Steam generator technology -

Steam bath

Here's how you make troublesome maintenance a thing of the past: With the KIN and SAN evaporators, you benefit from patented and easy-to-use limescale management, a control system with multicolor touch display and, of course, optimum energy utilization with maximum bathing comfort with excellent mist formation.

Thanks to the integrated bayonet container, two handles are all that's required to remove the accumulated lime from the steam generator from time to time. The collected lime can thus no longer cause any damage. This is ensured by the auto-adaptive blowdown control, which independently adjusts to the respective water quality.

And there are a few more advantages that we don't want to deprive you of: The evaporators, KIN for the steam bath and SAN for the SANARIUM^®, automatically generate steam while maintaining the desired temperature. The KLAFS KIN steam generator also doses the fragrance with microprocessor control, an integrated fragrance pump and a steam cylinder made of fine chrome-nickel steel, and it controls the exhaust air.

The best technology, therefore, for maximum steam bath enjoyment with cost and time savings in maintenance.

For perfect function and a long service life of KLAFS steam generator technology, the operating conditions need to be right. Here, an ambient temperature of 5 to 25 °C is required during operation for optimum mist formation (steam generator technically up to 40 °C).

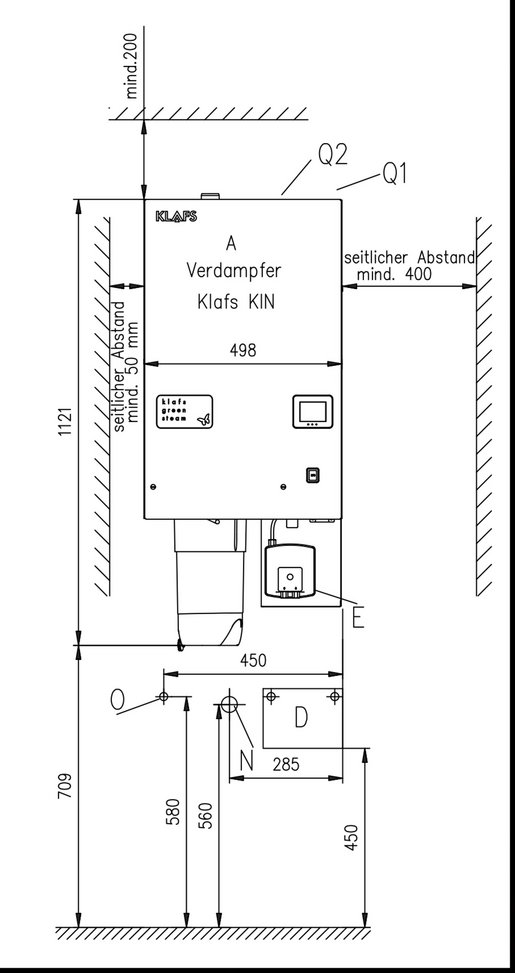

The steam connection should have a steam line length of max. 10 meters and comprise no more than four bends.

The ambient humidity of the device should be 75% RH.

Water quality and temperature are also relevant for optimized evaporation: Untreated drinking water or demineralized water (DI water) with an inlet temperature fromo 1-40 °C works best.

The water connection should be provided on site via an angle valve with ½ inch and connection pressure of 1-10 bar.

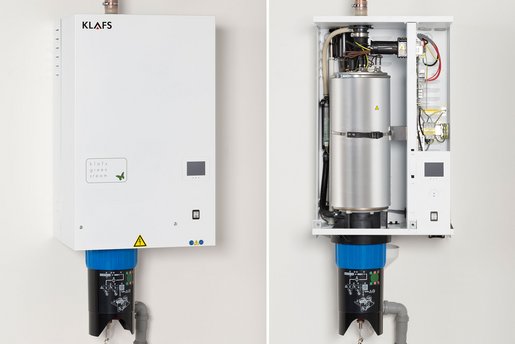

KIN steam generator for steam bath and SAN steam generator for SANARIUM^®
Improved handling of lime management: Simple and uncomplicated maintenance with two handles
Patented lime management for better operational reliability
No re-mineralizing necessary, adjusts to the water quality independently
Perfectly regulated: Temperature, exhaust air and fragrance
DVGW* approval (*Verein des Deutschen Gas- und Wasserfachs e.V.)
Control unit with multicolor touch display and intuitive menu navigation
Integrated LED control (light strip, indirect lighting) for KIN steam generator
Steam line with thermal insulation according to Energy Saving Ordinance (EnEV)
Thermal insulation of the steam bath
Thermal insulation of the stainless steel steam cylinder
Steam generator in three output levels with steam outputs of: 8 kg/h, 10 kg/h, 24 kg/h
Heating voltages: 400 - 415 V, control voltage: 230 V, 50 Hz
Protection class 1, protection type: IP20 (contact protection)

KIN steam generator for steam bath and SAN steam generator for SANARIUM^®
Improved handling of lime management: Simple and uncomplicated maintenance with two handles
Patented lime management for better operational reliability
No re-mineralizing necessary, adjusts to the water quality independently
Perfectly regulated: Temperature, exhaust air and fragrance
DVGW* approval (*Verein des Deutschen Gas- und Wasserfachs e.V.)
Control unit with multicolor touch display and intuitive menu navigation
Integrated LED control (light strip, indirect lighting) for KIN steam generator
Steam line with thermal insulation according to Energy Saving Ordinance (EnEV)
Thermal insulation of the steam bath
Thermal insulation of the stainless steel steam cylinder
Steam generator in three output levels with steam outputs of: 8 kg/h, 10 kg/h, 24 kg/h
Heating voltages: 400 - 415 V, control voltage: 230 V, 50 Hz
Protection class 1, protection type: IP20 (contact protection)
